Boiler manifold

Thermally separated chambers

DN25

up to: 70kW, 3m3/h

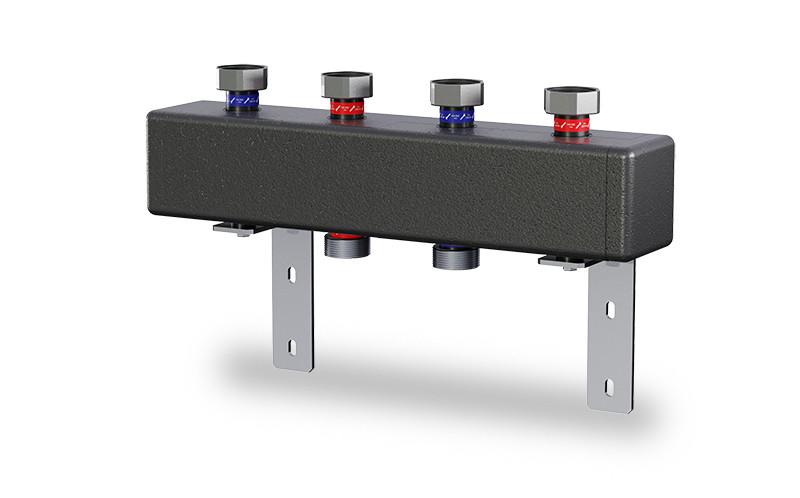

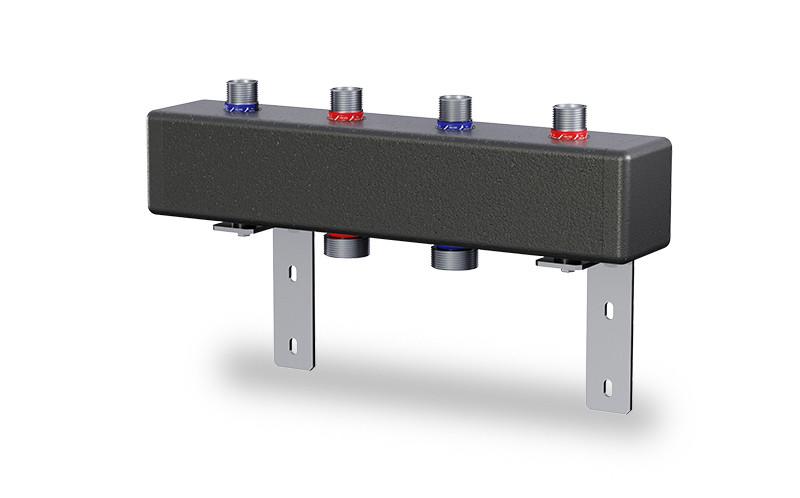

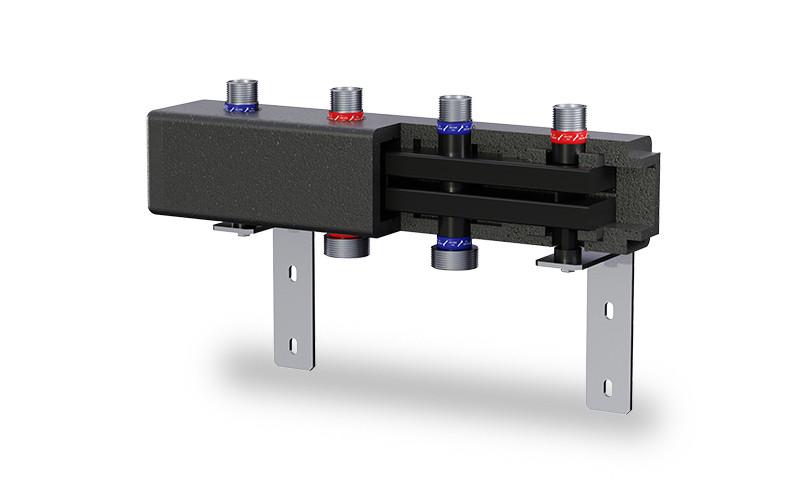

R70L-AG

Boiler manifold

  • Operating Data: max 110°C, 6bar
  • Modular EPP Insulation: 25mm
  • Pump Group: 2÷5 , 125mm axis distance
  • Pump Connection: 1ˇ male thread
  • Boiler Connection: 6/4ˇ male thread–flat seal
  • Wall Bracket: 100mm/150mm wall distance

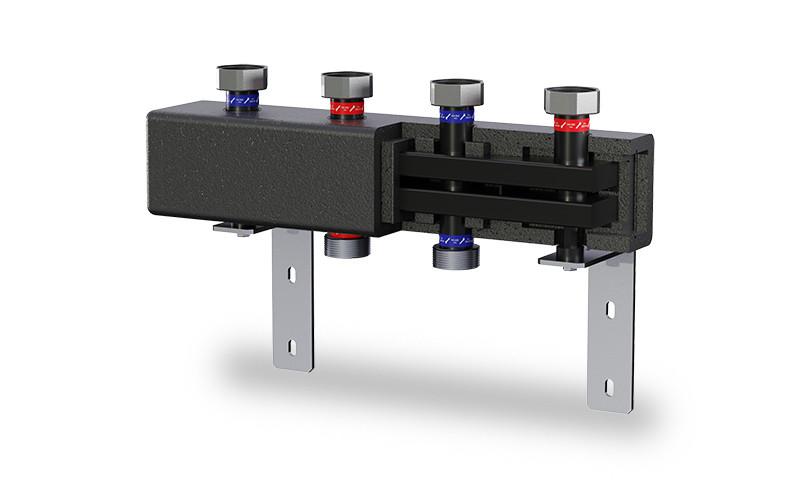

R70L-UM

Boiler manifold

  • Operating Data: max 110°C, 6bar
  • Modular EPP Insulation: 25mm
  • Pump Group: 2÷5 , 125mm axis distance
  • Pump Connection: 6/4˝ cap nut
  • Boiler Connection: 6/4ˇ male thread–flat seal
  • Wall Bracket: 100mm/150mm wall distance

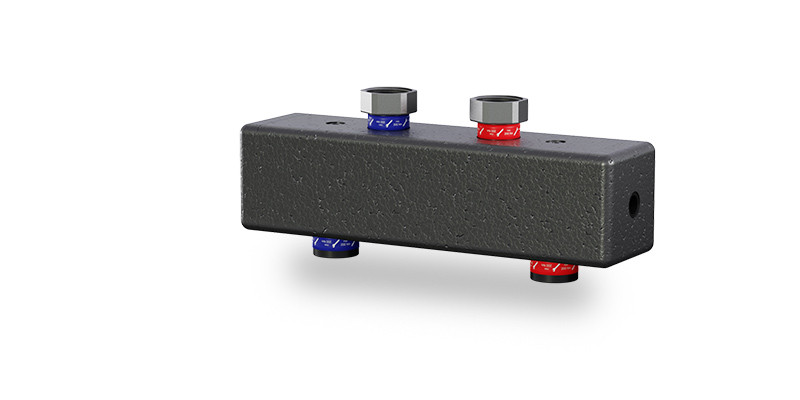

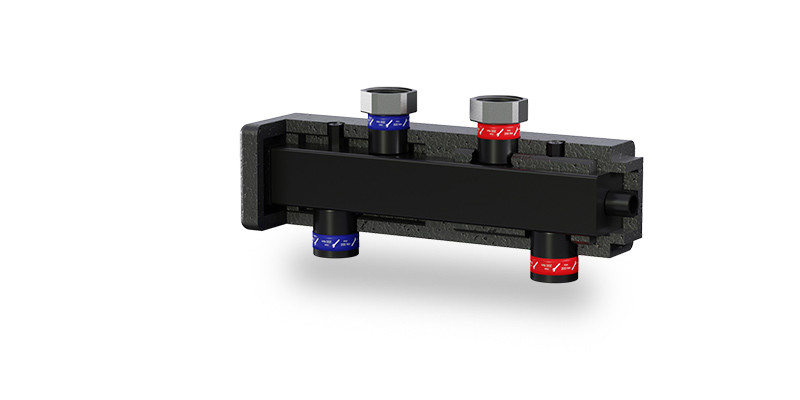

RW70

Hydraulic Separator

  • Operating Data: max 110°C, 6bar
  • Modular EPP Insulation: 25mm
  • Boiler Connection: 5/4˝ female thread
  • Boiler Manifold Connection: 6/4˝ male thread–flat seal
  • Temp. sensor conection: 1˝ female thread

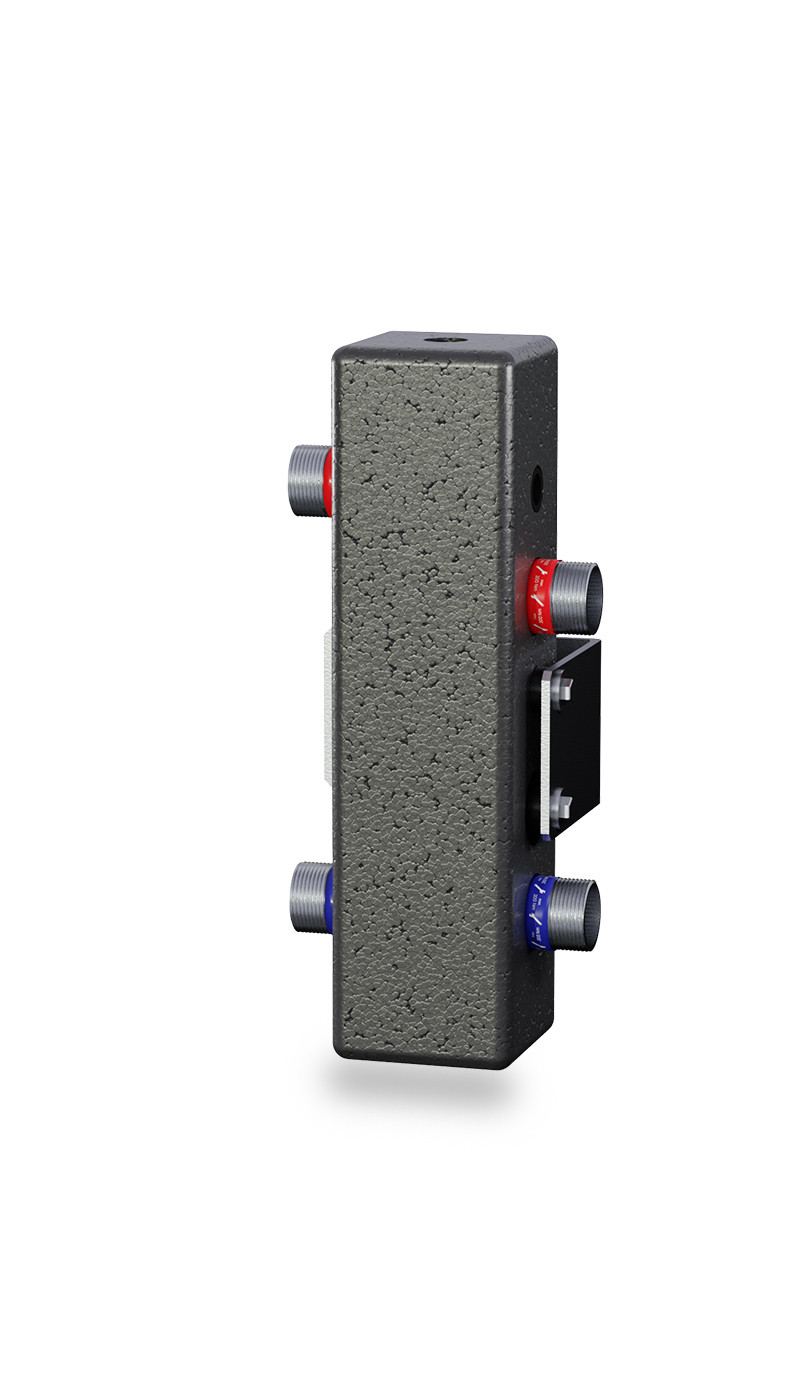

RW70P

Hydraulic Separator

  • Operating Data: max 110°C, 6bar
  • Modular EPP Insulation: 25mm
  • Boiler Connection: 5/4˝ male thread
  • Boiler Manifold Connection: 5/4 male thread
  • Temp. sensor conection: 1˝ female thread
  • Additional conections: 1/2˝ female thread
  • Wall Bracket: 100mm/150mm wall distance

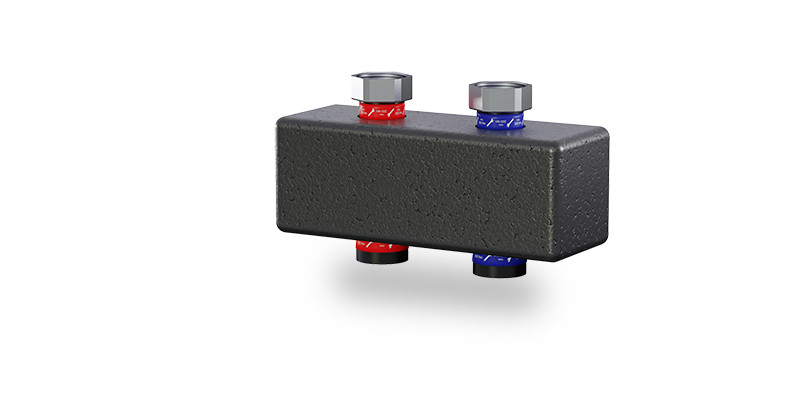

    RW70m

    Hydraulic Separator

    • Operating Data: max 110°C, 6bar
    • Modular EPP Insulation: 25mm
    • Boiler Connection: 6/4ˇ male thread–flat seal
    • Boiler Manifold Connection: 5/4 male thread
    • Temp. sensor conection: 1˝ female thread
    • Wall Bracket: 100mm/150mm wall distance

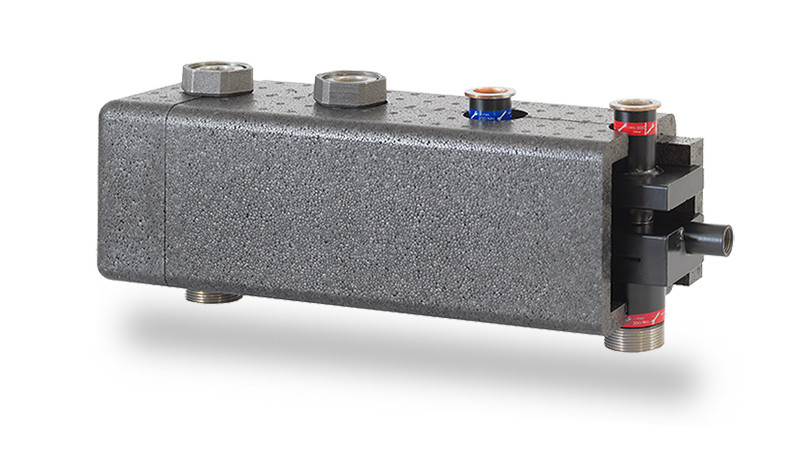

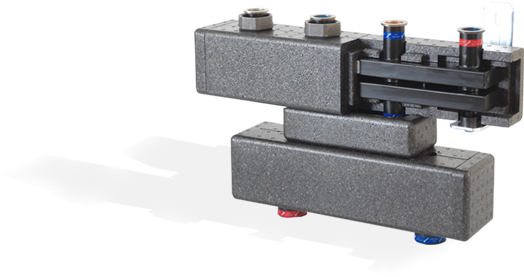

      RW70L Kombi-UM

      Combination Boiler Manifold-Hydraulic Separator

      • Operating Data: max 110°C, 6bar
      • Modular EPP Insulation: 35mm
      • Pump Group: 2 - 3, 125mm axis distance
      • Pump Connection: 6/4˝ cap nut
      • Boiler Connection: 6/4ˇ male thread–flat seal
      • Temp. sensor conection: 1˝ female thread
      • Wall Bracket: 160mm/220mm wall distance

      DN32

      up to: 170kW, 7m3/h

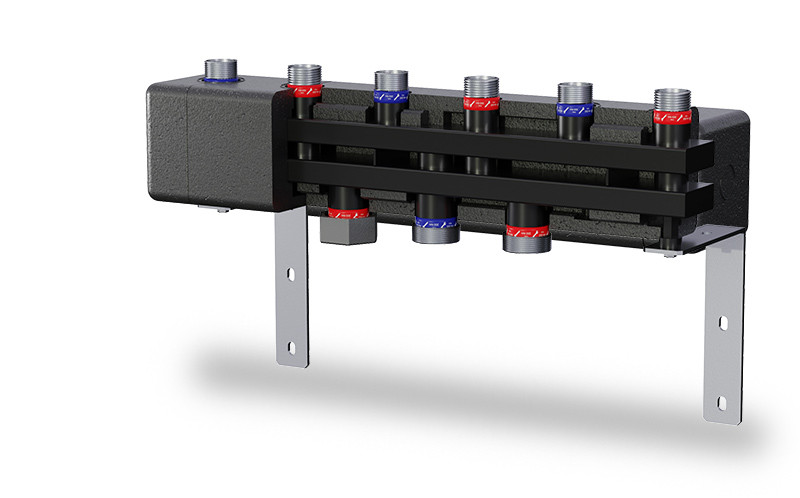

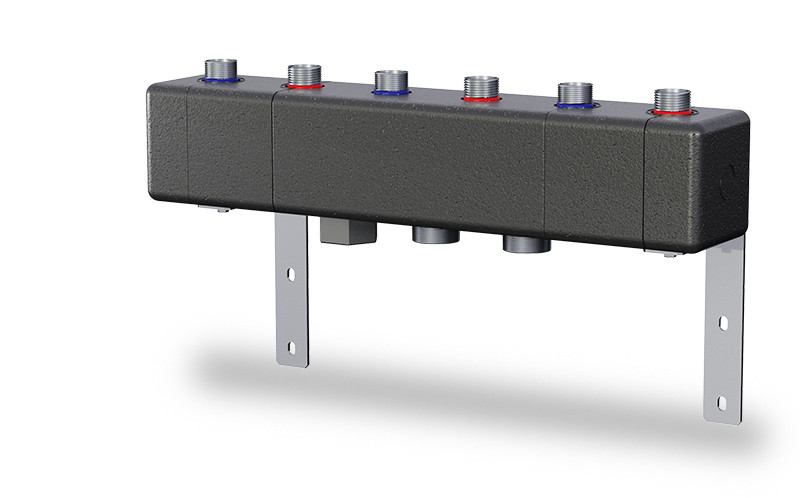

      R170L-AG

      Boiler manifold

      • Operating Data: max 110°C, 6bar
      • Modular EPP Insulation: 35mm
      • Pump Group: 2÷5 , 125mm axis distance
      • Pump Connection: 5/4˝ male thread
      • Boiler Connection: 2˝ male thread
      • Wall Bracket: 160mm/220mm wall distance

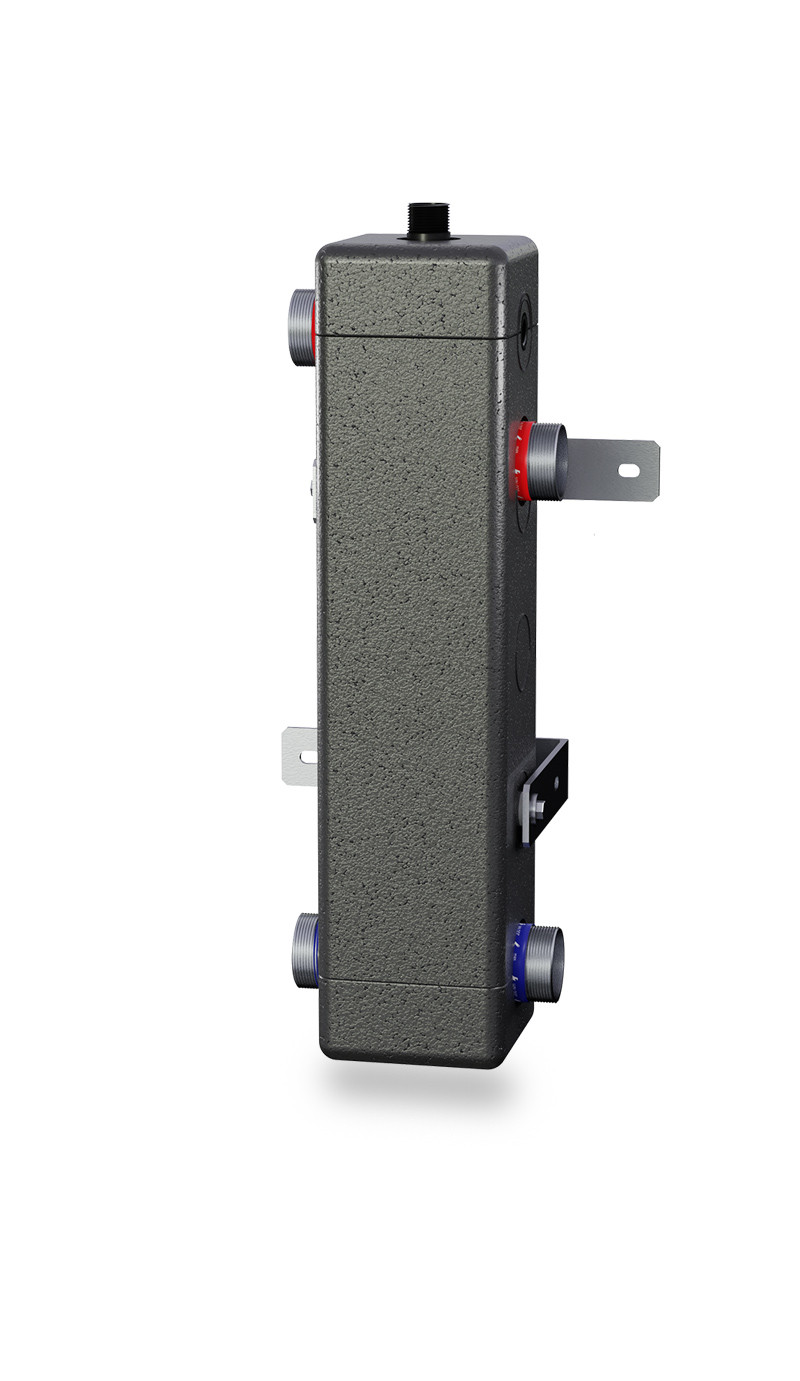

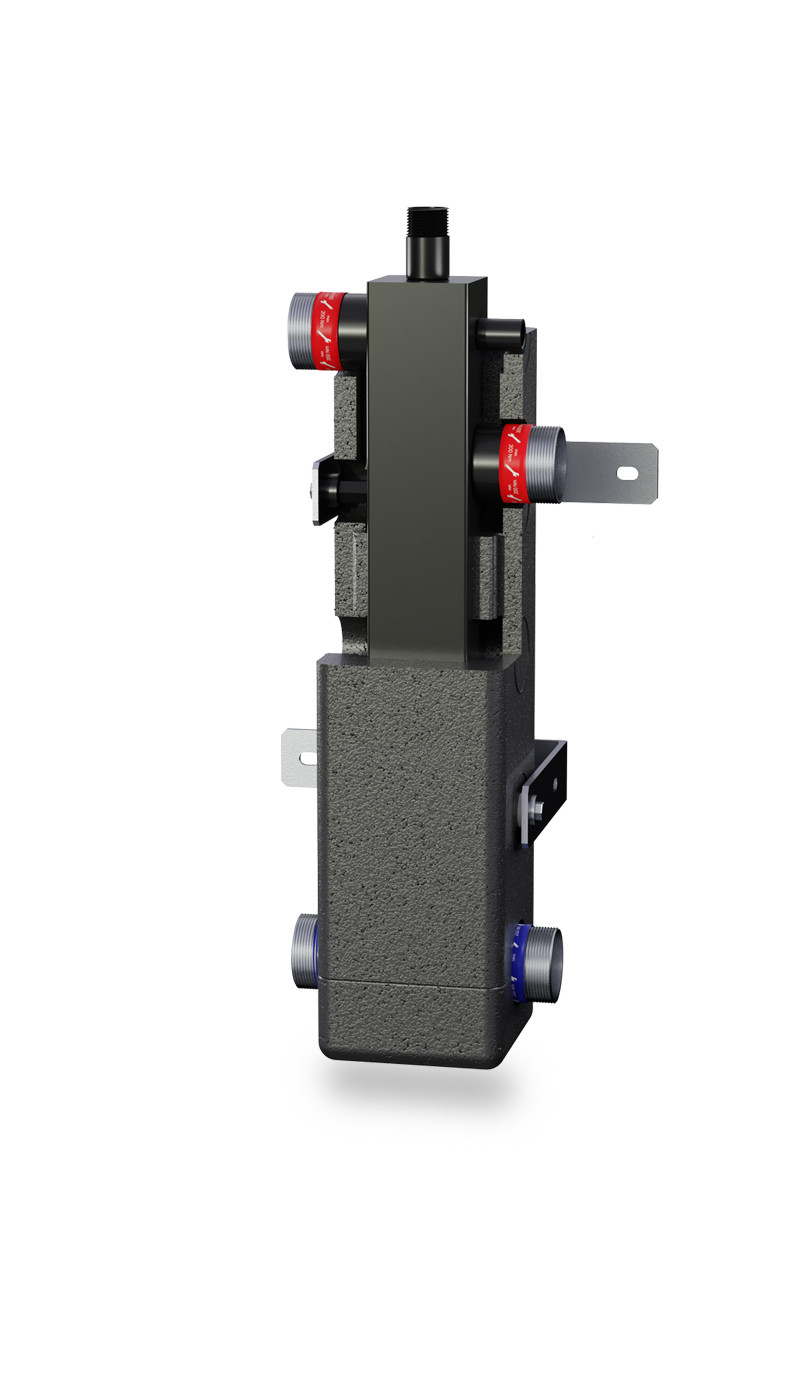

      RW170

      Hydraulic Separator

      • Operating Data: max 110°C, 6bar
      • Modular EPP Insulation: 35mm
      • Boiler Connection: 2˝ male thread
      • Boiler Manifold Connection: 2˝ male thread
      • Temp. sensor conection: 1˝ female thread
      • Additional conections: 1/2˝ female thread
      • Wall Bracket: 160mm/220mm wall distance
      Production: MMstudio
